Case Study: PLC Sequential Bottle Filling Station with Fault Detection and Manual Override

A full industrial bottling sequence controller built using OpenPLC Editor and IEC 61131-3 Structured Text (ST)

Project Overview

This project implements a multi-stage, state-machine-driven automated bottle filling station representative of real-world packaging and manufacturing line control systems. The controller manages the complete bottle handling sequence across discrete process steps — bottle presence detection, timed liquid fill, capper actuation, conveyor release, and batch counting — while incorporating fault detection with automatic process halt, and a dedicated manual override mode for maintenance and commissioning operations. The full solution was authored in IEC 61131-3 Structured Text within OpenPLC Editor and validated through forced-input simulation testing.

Problem

Automated bottling lines require deterministic, sequentially-ordered process control where each stage must complete successfully before the next can begin. Any deviation from expected conditions — a missing bottle, a timer overrun, or a failed actuator response — must be detected immediately and result in a controlled process halt to prevent product damage, equipment wear, or downstream line contamination. Simultaneously, the system must support operator intervention via manual override without compromising the integrity of the automatic control logic or requiring a full program restart to return to normal operation. Designing a control architecture that handles all three concerns — sequencing, fault safety, and dual-mode operation — within a single coherent PLC program was the core engineering challenge of this project.

Solution

Control System Architecture:

BottleSensor — Digital BOOL input; confirms bottle presence at the fill station before the sequence is permitted to advance from Step 1
ProcessStep — Integer state register; drives the step-based sequence execution engine, with each value mapping to a discrete machine state and its associated output conditions
FillValve — Discrete BOOL output; asserted during Step 2 for the duration of the FillTimer preset, then de-asserted before capping begins
Capper — Discrete BOOL output; activated during Step 3 under CapTimer control to actuate the capping mechanism for a defined dwell period
ConveyorMotor — Discrete BOOL output; pulsed during Step 4 under ReleaseTimer control to index the conveyor and advance the finished bottle out of the fill station
BottleCount — Integer accumulator; incremented at the completion of each successful full cycle to track total production output
FaultTimer — TON instance; monitors Step 1 dwell time — if BottleSensor remains de-asserted beyond the preset fault window, ProcessFault is set and the sequence halts
FaultAlarm — Discrete BOOL output; asserted on any ProcessFault condition to signal operators via indicator or SCADA interface
ManualMode — BOOL input; when asserted, suspends automatic sequence execution and transfers output control to the ManualFill, ManualCap, and ManualRelease operator inputs

Structured Text was selected as the implementation language over Ladder Logic due to the complexity of managing a multi-step state machine with concurrent timer instances, conditional fault branching, and dual-mode output arbitration within the same scan cycle. The explicit control flow available in Structured Text — conditional blocks, integer state comparisons, and inline timer calls — provided significantly cleaner and more maintainable logic than equivalent Ladder networks, which would have required extensive cross-referencing of coils and contacts across multiple rungs to represent the same behavior.

Project Screenshots

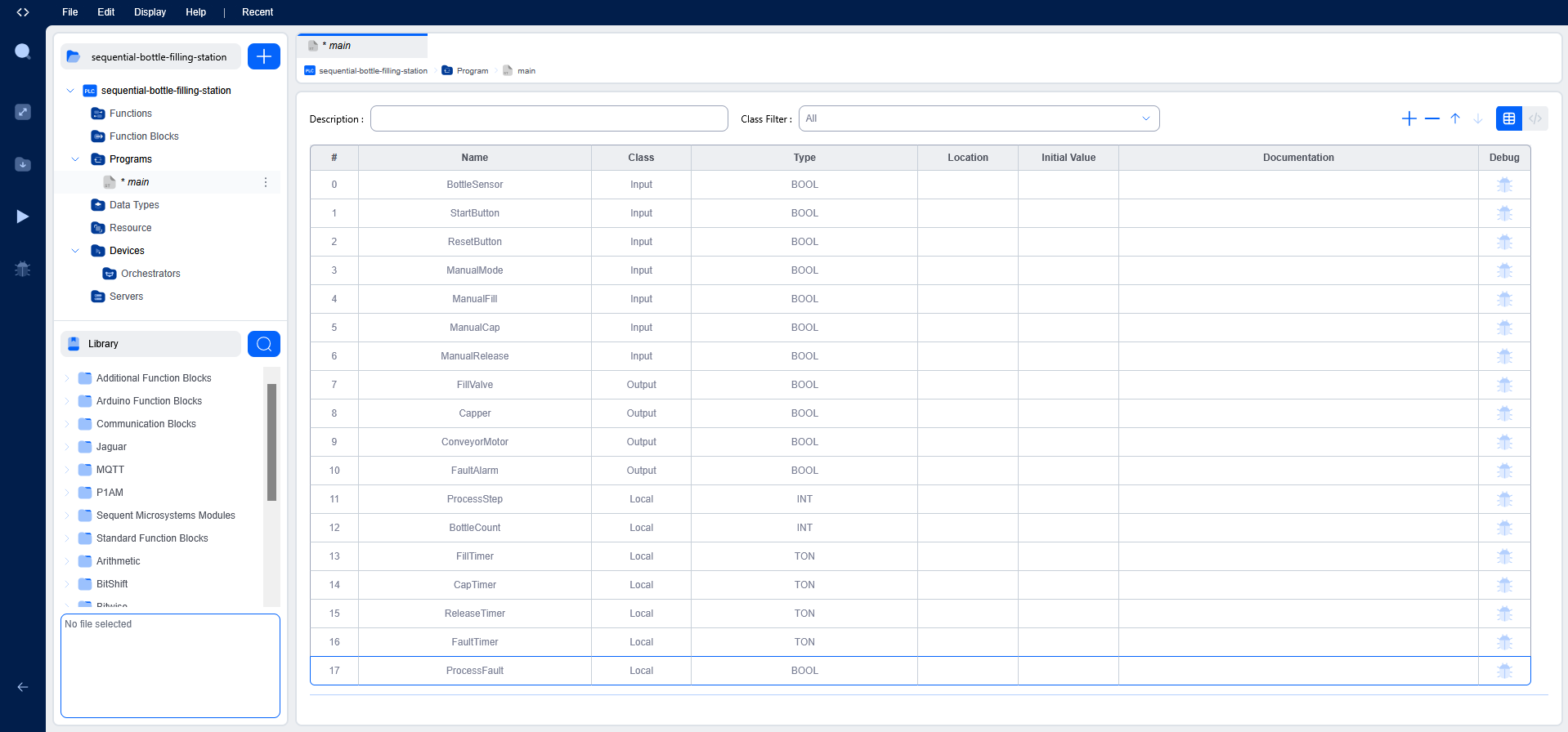

Project Variables — Full Variable Declaration — Inputs, Outputs, State Register, TON Timer Instances, and Fault Flag

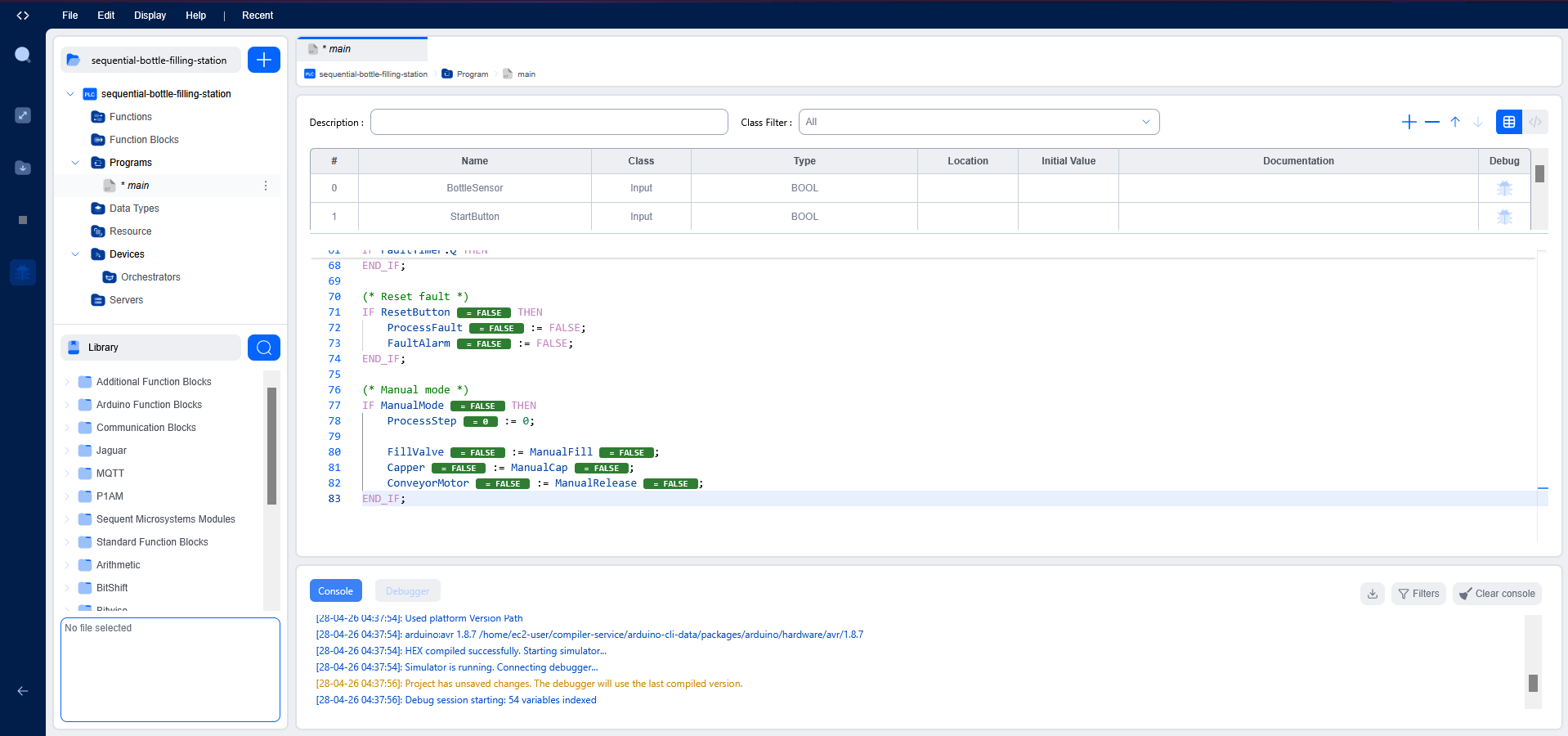

Structured Text Logic — Structured Text Sequence Logic — State Machine Execution, TON Timer Control, Fault Detection, and Manual Override Arbitration

Variables Used

VAR_INPUT
    BottleSensor     : BOOL;
    StartButton      : BOOL;
    ResetButton      : BOOL;
    ManualMode       : BOOL;
    ManualFill       : BOOL;
    ManualCap        : BOOL;
    ManualRelease    : BOOL;
END_VAR

VAR_OUTPUT
    FillValve        : BOOL;
    Capper           : BOOL;
    ConveyorMotor    : BOOL;
    FaultAlarm       : BOOL;
END_VAR

VAR
    ProcessStep      : INT;
    BottleCount      : INT;
    FillTimer        : TON;
    CapTimer         : TON;
    ReleaseTimer     : TON;
    FaultTimer       : TON;
    ProcessFault     : BOOL;
END_VAR

Core Structured Text Logic

(* Step-based sequence control *)

Step 1 → Wait for bottle
Step 2 → Fill bottle
Step 3 → Cap bottle
Step 4 → Release bottle

Fault Detection:
If no bottle is detected for too long,
system stops and triggers alarm.

Manual Mode:
Operator can manually control outputs
for maintenance and testing.

Testing & Debugging

System validation was conducted entirely within the OpenPLC runtime environment using the integrated simulator and real-time variable debugger. All digital inputs were exercised via forced-variable injection to replicate field conditions across every process stage without requiring physical hardware. The following test scenarios were executed and confirmed:

BottleSensor was forced HIGH to simulate bottle arrival at the fill station, triggering ProcessStep advancement from Step 1 to Step 2 as expected
FillTimer, CapTimer, and ReleaseTimer TON instances were verified to assert their respective outputs for the correct preset durations before advancing the state register
ProcessStep transitions were monitored in real time to confirm correct sequential ordering with no step skipping or re-entry under normal operating conditions
Fault detection was validated by holding BottleSensor LOW beyond the FaultTimer preset — ProcessFault was set and FaultAlarm asserted correctly with all process outputs de-energised
ManualMode was asserted mid-sequence to confirm automatic output control was suspended and individual outputs responded correctly to ManualFill, ManualCap, and ManualRelease inputs without cross-contamination from the sequence logic
ResetButton was verified to clear ProcessFault, de-assert FaultAlarm, and return ProcessStep to Step 1 within the same scan cycle, restoring the system to a ready state without requiring a program reload

Challenges Faced

The primary engineering challenge was designing a state machine that could handle fault injection and manual override without introducing undefined output states or unintended actuator activation during mode transitions. In early iterations, switching into ManualMode mid-sequence left residual timer state and output assertions from the previous step partially active, creating conflicting output conditions. This was resolved by implementing an explicit output de-energisation block at the top of the manual mode branch — ensuring all automatic outputs were unconditionally cleared before operator control inputs were evaluated, regardless of which ProcessStep was active at the time of the mode switch.

A secondary challenge involved ensuring TON timer instances reset correctly between sequence cycles. Timers that were not explicitly reset before re-entry into their associated steps retained elapsed time from the previous cycle, causing immediate .Q assertion on re-entry and skipping the intended dwell period entirely. This was corrected by resetting each TON's IN pin to FALSE for at least one scan cycle at step exit — a subtle but critical requirement of how IEC 61131-3 TON blocks handle state internally. Identifying and resolving this behaviour deepened my understanding of function block instance lifecycles within the PLC scan cycle model.

Key Learning Outcomes

Designing and implementing multi-step sequential process controllers using integer-based state machine architecture in IEC 61131-3 Structured Text
TON timer integration — managing instance state, reset timing, and .Q output behaviour across scan cycles in a sequential context
Fault-safe system design — implementing timeout-based fault detection, controlled process halt, and non-destructive fault recovery logic
Dual-mode output arbitration — engineering clean separation between automatic sequence control and manual operator override without output state conflicts
Industrial bottling and packaging line process flow — translating real-world multi-stage actuator sequences into deterministic PLC control logic
Advanced Structured Text programming patterns — state machines, conditional branching, inline function block calls, and scan-cycle-aware output management
PLC runtime simulation, forced-variable debugging, and live variable monitoring under OpenPLC Editor

Tools Used

OpenPLC Editor — IEC 61131-3 compliant PLC development environment
Autonomy Edge — Industrial automation platform
Structured Text (ST) — IEC 61131-3 high-level PLC programming language
OpenPLC Runtime Simulator and Variable Debugger
