Case Study - Bottle Filling Station Reborn (CODESYS)

Project Overview

This project re-implements a discrete bottle-filling station inside the CODESYS V3.5 development environment using IEC 61131-3 Ladder Diagram (LD). The objective was to migrate a legacy OpenPLC application onto a vendor-grade IDE while improving program determinism, scan-cycle behavior, and maintainability for an industrial deployment context.

Rather than performing a one-to-one port of the original rungs, the control logic was re-architected around an explicit deterministic finite-state machine (FSM) with mutually exclusive states — Idle, Filling, Transfer, and Complete — and well-defined transition conditions. This approach mirrors industry-standard practice for sequential process control and produces predictable, auditable behavior across every PLC scan cycle.

Problem

Bottle-filling lines impose strict sequencing requirements: each bottle must index into position, dwell for a fixed fill duration governed by valve open-time, and then index out before the next unit is admitted. A naive implementation using direct sensor-to-output coupling is prone to several well-known failure modes — output chattering when the sensor signal is noisy, double-triggering when a bottle dwells across multiple scans, race conditions between the fill timer and the conveyor restart, and ambiguous machine state during fault recovery. The control system therefore needs a single source of truth for machine state, debounced and latched transitions, and unambiguous operator feedback at every phase of the cycle.

Solution

Implemented I/O and State Variables:

Bottle_Sensor → Discrete input (BOOL); presence detection at the fill nozzle, used as the entry transition condition for the Filling state
Fill_Valve → Discrete output (BOOL); energized exclusively while State_Filling is active, ensuring the valve cannot open outside its intended state
Fill_Timer → IEC 61131-3 TON function block with PT := T#5s; provides the dwell time and emits the Q signal that drives the Filling-to-Transfer transition
Conveyor_Motor → Discrete output (BOOL); de-energized during Filling for positional stability, re-energized during Transfer
Fill_Complete → Status flag (BOOL) for HMI/operator feedback at the end of each cycle
State_Idle → Initial state (BOOL := TRUE); awaits a rising edge on Bottle_Sensor
State_Filling → Active fill phase; valve open, conveyor stopped, TON accumulating
State_Transfer → Indexing phase; valve closed, conveyor running until the bottle clears the sensor
State_Complete → Terminal cycle state; latches Fill_Complete and resets the FSM back to Idle for the next bottle

State retention is implemented using Set (S) and Reset (R) coils rather than self-holding seal-in branches, giving each state a distinct latch instruction and eliminating the ambiguity of overlapping seal contacts. Transitions are guarded by the conjunction of the current state coil and its trigger condition, which guarantees mutual exclusivity — at any scan, exactly one state coil is energized. This pattern aligns with how PLCopen and most industrial integrators structure sequential function logic, and it makes the program directly translatable to SFC if the project ever needs to scale to a more complex recipe.

Project Screenshots

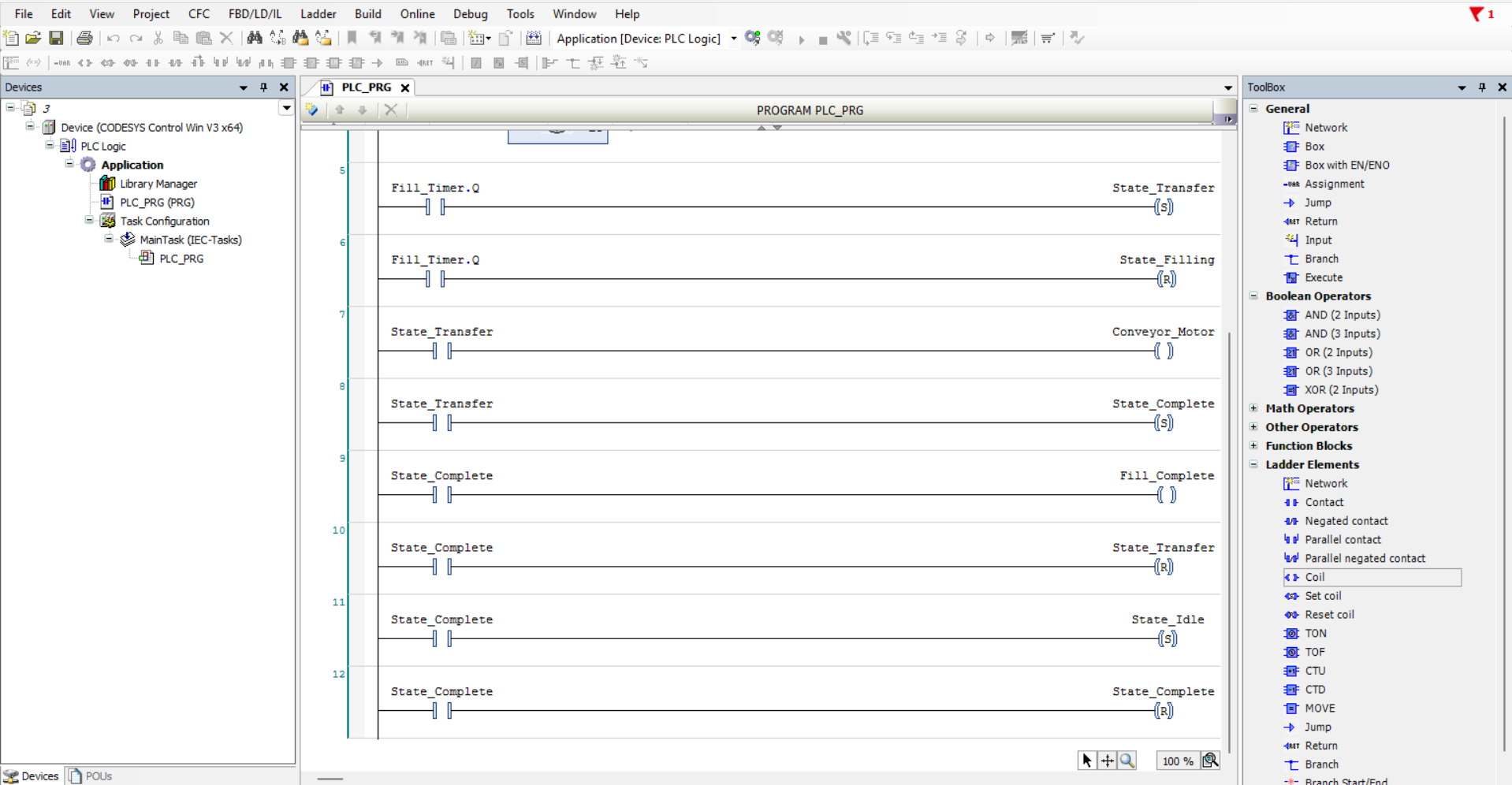

Bottle filling station ladder logic — Complete Ladder Diagram FSM implementing the Idle → Filling → Transfer → Complete cycle

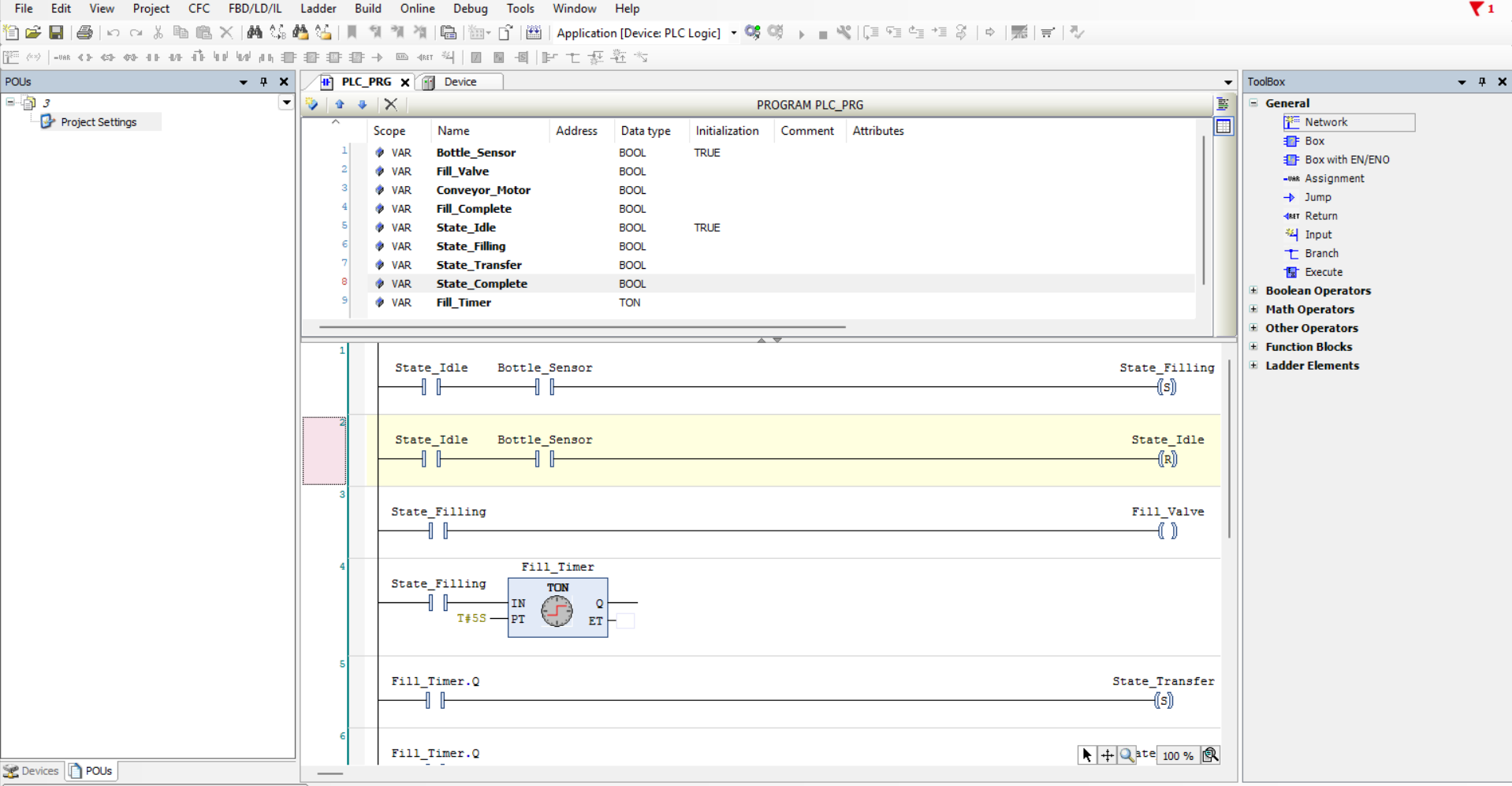

State transition ladder logic — State transition rungs using Set/Reset coil pairs to enforce mutually exclusive states

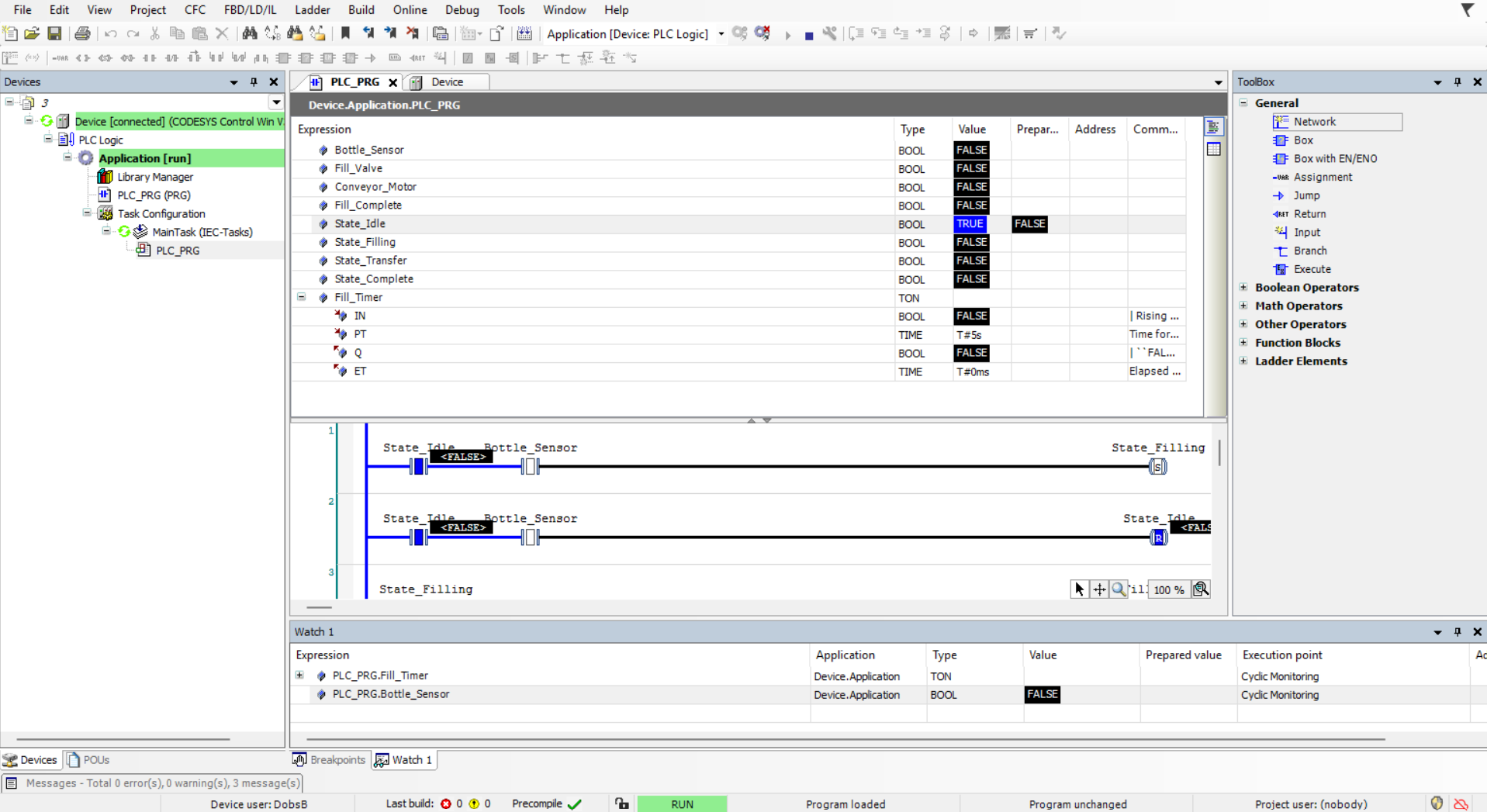

Online testing and force debugging — Online mode with variable forcing, live power-flow visualization, and runtime monitoring

Variables Used

VAR
    (* Field I/O *)
    Bottle_Sensor   : BOOL;   (* DI - bottle presence at fill nozzle *)
    Fill_Valve      : BOOL;   (* DO - solenoid valve, active during fill  *)
    Conveyor_Motor  : BOOL;   (* DO - conveyor drive command              *)
    Fill_Complete   : BOOL;   (* Status flag for HMI / operator feedback  *)

    (* FSM state coils - mutually exclusive *)
    State_Idle      : BOOL := TRUE;
    State_Filling   : BOOL;
    State_Transfer  : BOOL;
    State_Complete  : BOOL;

    (* IEC 61131-3 timer FB - 5 second fill dwell *)
    Fill_Timer      : TON;
END_VAR

Core Logic Example

Rung 1 - Entry transition (Idle -> Filling):
| State_Idle    Bottle_Sensor                          (S) State_Filling |
|----| |----------| |--------------------------------------(  )---------|

Rung 2 - Reset Idle latch on the same transition:
| State_Idle    Bottle_Sensor                          (R) State_Idle    |
|----| |----------| |--------------------------------------(  )---------|

Rung 3 - Output coupling (valve follows state, not sensor):
| State_Filling                                            Fill_Valve    |
|------| |---------------------------------------------------(  )-------|

Rung 4 - Dwell timer driven by state coil:
| State_Filling                              TON                         |
|------| |--------------------------------IN     Q-------                |
|                                  T#5s--PT     ET-------                |

Rung 5 - Exit transition (Filling -> Transfer on TON.Q):
| State_Filling   Fill_Timer.Q                       (S) State_Transfer  |
|------| |----------| |---------------------------------(  )------------|

Testing & Debugging

Validation was performed against CODESYS Control Win runtime using the IDE's online mode, which provides live power-flow visualization, real-time variable inspection, and the ability to force I/O independently of the underlying program logic. Each transition was exercised in isolation and the outputs verified against the FSM specification.

Bottle_Sensor was forced TRUE/FALSE to simulate bottle arrival and departure without physical hardware in the loop
Online ladder monitoring confirmed energized rungs in blue power-flow indication, validating the active state at every scan
Fill_Timer (TON) was verified for accurate accumulation of ET and a clean rising edge on Q at PT = T#5s
All four state transitions (Idle→Filling, Filling→Transfer, Transfer→Complete, Complete→Idle) were exercised and observed
Mutual exclusivity of state coils was confirmed — no scan ever showed two states simultaneously energized
Output behavior (Fill_Valve, Conveyor_Motor, Fill_Complete) was verified to match the state table for every phase
All forced values were released after validation so that the runtime accurately reflected program-driven behavior

Challenges Faced

The most substantial challenge was reconciling behavioral differences between the OpenPLC runtime and the CODESYS scan engine. Online monitoring semantics, the behavior of forced variables, and the way Set/Reset coils interact with task scheduling all differ between the two environments, which required rebuilding my mental model of how the program executes per scan cycle and adapting my debugging workflow accordingly.

A second challenge was eliminating instability that originated from coupling outputs directly to sensor inputs in the original implementation. That pattern is fragile under noisy field signals and produces non-deterministic behavior at state boundaries. Re-architecting the program around an explicit FSM with latched states and guarded transitions removed this entire class of failure mode and produced a control program with predictable, repeatable cycle behavior suitable for an industrial environment.

Key Learning Outcomes

CODESYS V3.5 project architecture, device tree configuration, and cyclic task scheduling
FSM design in Ladder Diagram following IEC 61131-3 conventions and PLCopen patterns
TON, TOF, and TP timer function block semantics, including IN/PT/Q/ET signal behavior
Latched state control via Set/Reset coil pairs versus seal-in self-holding logic
Online debugging methodology — power-flow tracing, variable forcing, and breakpoint use
Cross-platform PLC migration workflow from OpenPLC to a vendor-grade industrial IDE
Discipline around scan-cycle determinism and mutually exclusive program state

Tools Used

CODESYS Development System V3.5 SP22
CODESYS Control Win V3 soft-PLC runtime
IEC 61131-3 Ladder Diagram (LD)
IEC 61131-3 standard library — TON timer function block
Online mode: live power-flow monitoring, variable forcing, and watch lists

Case Study: Bottle Filling Station Reborn
